AV-1698/TM1688

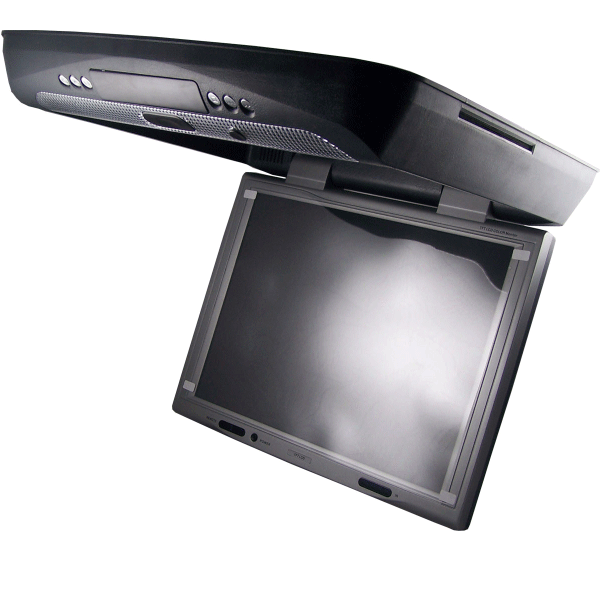

15 inch Overhead Flip down Car LCD Monitor with USB/VGA/HDMI port and TF card reader,Support Dolby audio and video playback
NEWLM supplies vehicle-grade Overhead flip-down vehicle monitor，Ceiling-mounted Monitor,Roof-mounted Flip-down Monitor for bus,coach,long-distance bus etc. With the great R&D support, we also offer ODM &OEM services; please kindly contact for details.
Description
Model: AV-1698/TM1688(Old version model)
Remarks: DV-1698(15inch overhead flip-down monitor built in DVS DVD player) isn’t available
Special Features/Key Specifications:
Panel: 15 inch flipdown monitor with IR transmitter
screen: 15 inch SHARP monitor/SAMSUNG
Aspect Ratio: 4:3
Resolution: 1024×768 pixels
Brightness: 400 cd/㎡
Contrast: 350:1
TV system: PAL&NTSC auto switching
Video: 2 way video input
Audio:1 way left and right audio input
Full Band FM transmitter function.FM87.70MHZ-FM107.9MHZ
Double channel IR transmitter function .A: 2.3MHz (L), 2.8MHz (R), B : 3.2MHz(L), 3.8MHz(R).

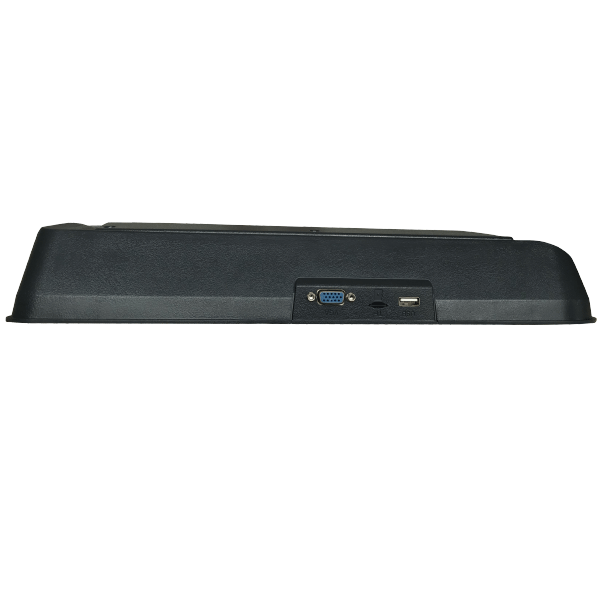

USB port, up to 1TB of Mobile HD
TF card reader. Up to 64G SD card memory.
With VGA port
With HDMI port
Support High Definition 1920×1080 Full format player
Power supply: DC12-32V
Power consumption: ≤27W
Full functional Remote control
Available color: Black, Beige, Grey
Accessories: manual, remote controller, video&power supply cable, screw 10pcs.
| Compatible with Video multimedia format | |||||
| File Extension | Container | Video Codec | SPEC | Bit Rate | |
| dat, mpg, mpeg | MPG,MPEG | Mpeg1,2 | 1920×1080@ 30P | 20Mbit/sec | |
| ts, trp, tp | MPEG2 -TS H264-TS |
MPEG2 ,H.264 | 1920×1080 @ 30P | 20Mbit/sec | |
| vob | MPEG2 -PS | MPEG2 | 1920×1080 @ 30P | 20Mbit/sec | |
| mp4 | AVI, MP4 | MPEG4 Divx 3.11, Divx 4.12, Divx 5.x, Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264 |
1920×1080 @ 30P | 20Mbit/sec | |
| rm, rmvb | RMVB, RM | rm code RV8, RV9, RV10 | 1280×720 @ 30P | 10Mbit/sec | |
| mkv | MKV | H.264, MPEG1,2,4 | 1920×1080 @ 30P | 20Mbit/sec | |
| divx, avi | AVI(1.0, 2.0), DMF0,1,2 |
MPEG2, MPEG4 Divx 3.11, Divx 4.Divx 5, Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264 |
1920×1080 @ 30P | 20Mbit/sec | |
| asf | ASF (Revision 01.20.03) |
VC1 | 1920×1080 @ 30P | 20Mbit/sec | |
| Compatible with Audio multimedia format | |||||
| Audio Codec | File Extension | Bit Rate | |||
| MPEG1 Layer2 | MP3 | 32Kbps ~ 448Kbps(Bit rate) 32KHz ~ 48KHz(Sampling rate) | |||
| MPEG1 Layer3 | MP3 | 32Kbps ~ 320Kbps(Bit rate) 32KHz ~ 48KHz(Sampling rate) |
|||
| AC3 | N/A(work with video files only | 32Kbps ~ 640Kbps(Bit rate),32KHz, 44.1KHz, 48KHz(Sampling rate) | |||
| EAC3 | N/A(work with video files only) | 32Kbps ~ 6 Mbps 32KHz, 44.1KHz, 48KHz(Sampling rate) |
|||
| AAC, HEAAC | M4A/AAC | 24Kbps ~ 384Kbps(Bit rate) 8KHz ~ 48KHz(Sampling rate) | |||
| WMA | WMA/ASF | Bitrate: 128bps ~ 320Kbps Sampling Rate: 8KHz ~ 48Khz |
|||
| LPCM | N/A(work with video files only) | Bitrate: 64Kbps ~ 1.5Mbps Sampling Rate: 8KHz ~ 48Khz |
|||
| IMA-ADPCM/MS-ADPCM | N/A(work with video files only) | Bitrate: 384Kbps Sampling Rate: 8KHz ~ 48Khz |
|||
| LBR | N/A(work with video files only) | Bitrate: 6Kbps ~ 96Kbps Sampling Rate: 8KHz ~ 48Khz |
|||
| Remarks：Some video and audio format can be released when its related license should be supplied by customer. e.g.AC3、DIVX | |||||
| Compatible with multimedia image format | |||||
| Image | Photo | Resolution T2 & Pluto | Resolution T3/T4 | Required DRAM size by T3/T4 (Mbytes) | |
| JPEG | Base-line | 8192×8192 | 15360×8640 | 3.96 | |
| Progressive | 1024×768 | 1024×768 | 6.00 | ||
| PNG | non-interlace | 9000×6000 | 9600×6400 | 3.66 | |
| interlace | 1200×768 | 1200×800 | 3.66 | ||
| BMP | 9000×6000 | 9600×6400 | 3.66 | ||
Packing Details:
Product Meas: L405xW395xD60MM
Box Meas.: L465×W135×H455MM
Product N.W: 3.85KG, G.W: 4.8KG
Package: 3pcs/CTN
CTN Meas.: L480×W415×H475MM
Total G.W.: 15.5KG/3pcs
