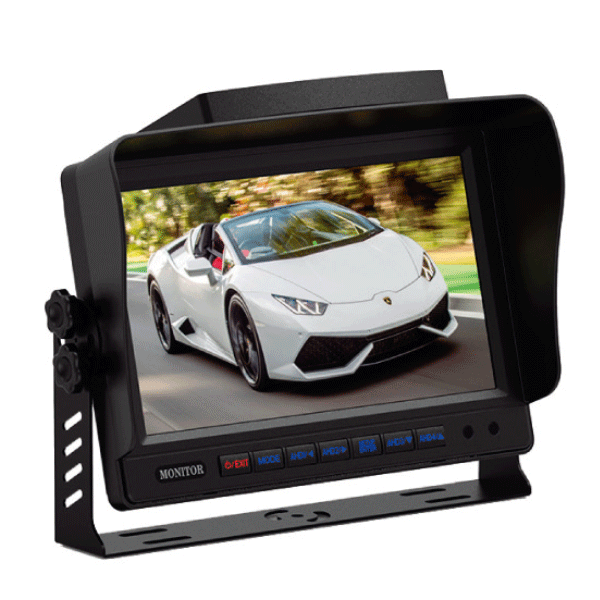

NL-M1019AHD-QRT
10.1″ inch HD touch-screen Quad-view recording monitor
NEWLM 10.1 inch HD touch-screen Quad-view recording monitor, in-vehicle plus monitor functions, standing for a major technical upgrade in in-vehicle monitor industry. It supports 4CH HD cameras input which allows the driver to see directly the environment around the vehicle while driving. This can reduce the possibilities of scratch and other accidents. This HD monitor can realize HD real-time monitoring, Simpler and more convenient operation, providing drivers with enhanced safety and comfort.
Description
Model: NL-M1019AHD-QRT
Special Features/Key Specifications:
10.1inch high definition monitor, digital screen, new panel
Aspect Ratio: 16:9
Resolution: 1024×600 pixels
With capacitive touch screen
Brightness: 400 cd/㎡
Contrast: 500:1
TV system: PAL&NTSC auto switching
With Split-screen, Single /Split /Quad view selectable
Video: 4 way video input, 4 way triggers wire
Trigger priority: CAM 2>CAM 3>CAM 4>CAM1
With 4pin Circular Connector

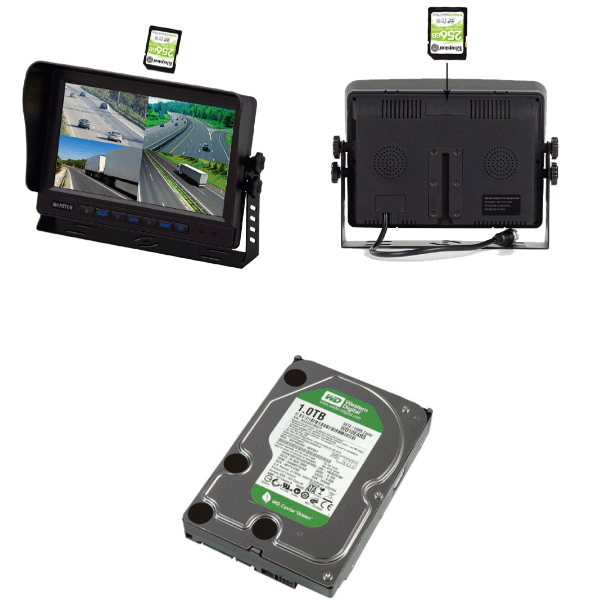

Built-in DVR function, Support 256 SD&HDD 1T ,Built-in speaker
High-low voltage protection & short circuit protection
Multiple video formats available to cameras:CVBS/1080P 30/ 1080P 25/ 720P 30/ 720P 25/ PAL/ NTSC
2 languages OSD，remote control
Support vertical, mirror and normal viewing
Wide power supply: DC9V-32V
Touch key-press
Detachable sunshade
Metal U type bracket
Dimension:25.5 x 16.7 x 3.0cm( without shade)
27.5 x 18.4 x 7.8cm (with shade)
| Color depth | 24bit |
| Display colors | 16.7M dithering |
| Power supply | DC9V-32V |
| Power consumption | About 10W |
| Dimension | 25.5 x 16.7 x 3.0cm( without shade) 27.5 x 18.4 x 7.8cm (with shade) |
| Dot pitch | 0.1506(H) × 0.1432 (V) |
| Resolution | 1024 x 3(RGB) x 600 |
| Contrast | 500:1 |
| Brightness | 400 cd/㎡ |
| Viewing angle | U:60°,D: 70°, R/L: 80°/80° |
| Operating temp. & humidity | -20ºC~+70ºC,RH90%MAX |
| Storage temp. & humidity | -30ºC~+80ºC,RH90%MAX |
